Philips SpeechMike Premium Touch Dictation Microphone SMP3700/3800

Philips SpeechMike Premium Touch Dictation Microphone SMP3700 series

Product Code:SMP3700

Best-in-class recording

with Precision Microphone
SpeechMike Premium Touch is the latest innovation from Philips. It comes with a premium decoupled studio quality microphone, a built-in noise reduction filter, antimicrobial housing and a motion sensor for the clearest speech recordings and most accurate speech recognition results. The new touch sensor ensures easier navigation, saving you even more time.

Description

SMP3700

Philips SpeechMike Premium Touch Dictation Microphone SMP3700 series



Highlights

Superior audio quality
  • Noise-canceling microphone for accurate speech recognition results
  • Integrated sound card and speaker ensuring crystal clear playbac

Enhance your productivity

  • Comfortable ergonomic design for one-thumb operation
  • Antimicrobial surface for active bacteria reduction and improved hygiene
  • Attach client or patient data to a recording simply by scanning a barcode

Designed for professionals

  • Available with Philips SpeechExec professional dictation software
  • Geared for Dragon NaturallySpeaking speech recognition software
  • Can be fully integrated into existing workflow systems




FEATURES

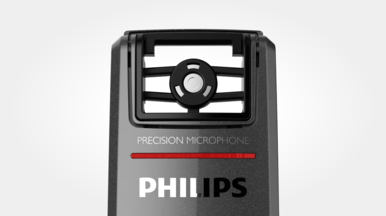

csm lfh3600 de coupled microphone fim rgb 461978b4b8

Decoupled studio quality microphone for precise recording

The free-floating microphone is decoupled from the device’s housing, which guarantees that almost no background, touch, click, air or structure-borne noise is recorded. This technique is derived from studio microphones to make sure there are no sound distortions whatsoever and to guarantee outstanding speech recognition results.

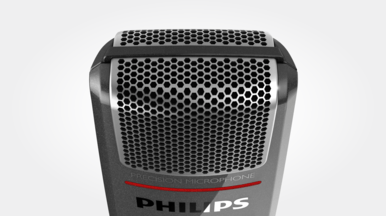

csm lfh3600 metal microphone grille fim rgb a13c439d71

Microphone grille with optimize structure for crystal clear sound

The metal grille comes with specially designed hexagonal openings which allow three times more sound to reach the microphone than its predecessor, engineered to provide crystal clear recordings.

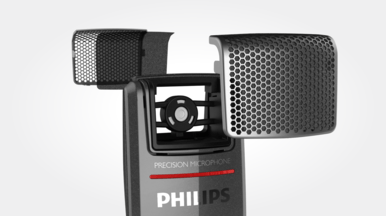

csm lfh3600 integrated pop filter fim rgb 00148fe818Integrated pop filter for perfect recording quality

Fleece inserted above and below the microphone capsule filters out sound distortions such as pop and hiss noise, guaranteeing perfect results even if dictating closely into the microphone.

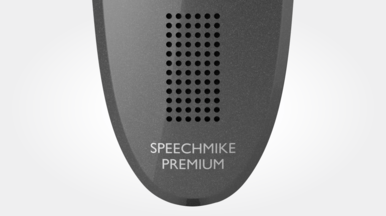

large speaker area for premium playback

csm lfh3600 larger speaker area fim rgb 56de39f040

The SpeechMike Premium Touch is equipped with an extra-large speaker, enabling it to not only record but also play back recordings in clear and crisp quality.

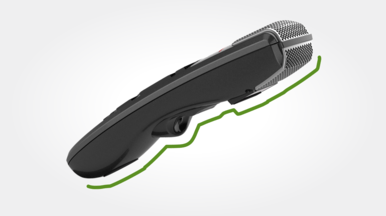

csm lfh3600 ergonomically shaped fim rgb 229094c472Ergonomically shaped for perfect fit in the hand

The device is designed to fit perfectly into the hand and reduce unintentional pressing of buttons. The trigger and the ‘command’ button on the back of the device are engineered to be in easy reach for the fingers.

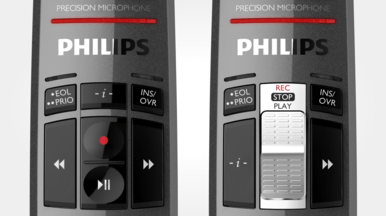

Wear free slide switch or push buttons for comfortable operation

csm lfh3600 slide switch or push button fim rgb 2c21abea68

The SpeechMike Premium Touch comes with a slide-switch or a push-button operation. The slide switch is wear-free and ergonomically shaped with a softly ribbed surface for smooth tactile feedback and comfortable and intuitive utilization. In addition, our engineers implemented a millionfold proven contactless slider detection, making it completely wear-free for an extra-long lifetime.

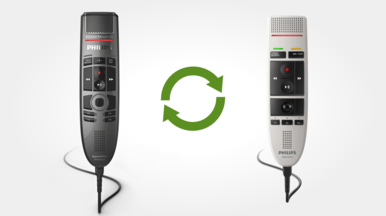

csm smp3700 backwards compatibility fim rgb 1e174ded58Smart, backwards compatible firmware for extra flexibility

Customers can upgrade from their previous SpeechMike model without installing additional software. For integrators, this means no changes need to be implemented and the existing SDK can be used. The SpeechMike Premium Touch is compatible with Mac and Windows operating systems, as well as virtual environments such as Citrix, VM Ware and Hyper-V. It can be configured using SpeechControl, the convenient Philips hardware management tool.

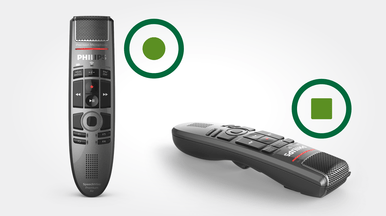

Integrated motion sensor mutes microphone when not in use

csm smp4000 integrated motion sensor fim rgb 4215d57412

Being on the cutting edge of technology, the SpeechMike Premium Touch comes with an integrated motion sensor, making it the first stationary dictation device that can be controlled by the movement of your hand. It detects when it’s put on the table, mutes the microphone, and once it is being picked up again it unmutes the microphone. In addition to that, custom events can be programmed, e.g., to pause and to continue the recording.

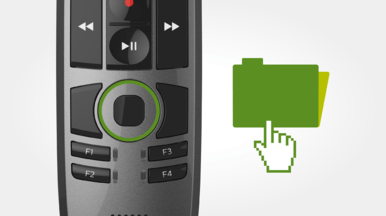

csm smp3700 touch sensor fim rgb eb7e516eee

Touch sensor for integrated mouse function

The device comes with a touch sensor. This allows the user to easily control and navigate within applications while recording, without having to switch between the mouse and microphone.

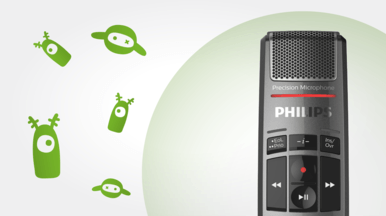

Antimicrobial housing and buttons for hygienic working

csm smp3700 antimicrobial housing fim rgb 8daec6df34

The housing and the buttons of the SpeechMike Premium Touch are made of antimicrobial synthetics that work against a wide range of different microorganisms such as bacteria (e.g. pneumococcal bacilli and multiresistant microorganisms such as MRSA), viruses (e.g. HIV, influenza, etc.), fungi (e.g. Aspergillus niger), or algae. The polished, high quality pearl metal surface also makes the device non-sensitive to touch noises and fingerprints.











csm smp3700 configurable keys fim rgb 7a8d0f8073

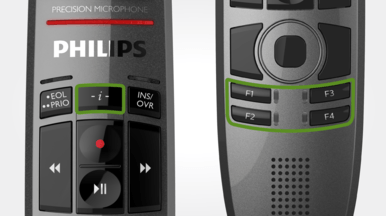

Freely configurable function keys for a personalized workflo



The SpeechMike Premium Touch has freely configurable keys which are especially useful for programming speech recognition commands. The device can be personalized for any user and application.

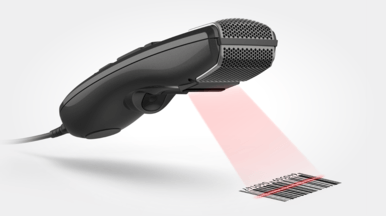

barcode scanner for streamlined documentation

csm smp3700 barcode scanner fim rgb 6a7f018d42

The SpeechMike Premium Touch is also available with an integrated barcode scanner to link client or patient data to a recorded file simply by scanning a barcode. The scanned information is automatically attached to the dictation file, streamlining the documentation process. All identifying information is entered accurately, increasing security and potential for cost savings.

SPECIFICATIONS

SPECIFICATIONS

Technical Specifications

Connectivity

USB: High-speed USB 2.0

Audio recording

Microphone type: electret condenser microphone

Microphone capsule: 10 mm

Characteristic: uni-directional

Frequency response: 200–10 000 Hz

Sensitivity: 85 dB–104 dB (depending on position of mic-slider in sound control panel)

Signal-to-noise ratio: > 70 dBA

Sound

Speaker type: built-in round, dynamic speaker

Speaker diameter: 30 mm

Acoustic frequency response: 300–7500 Hz

Speaker output power: > 200 mW




Barcode scanner (LFH3300/3010)

Compatible bar codes: EAN, UPC, Code 11/39/93/128, Codabar, MSI Code, RSS, Interleaved 2 of 5, Discrete 2 of 5

Laser class: class 1 laser product

System requirements

Processor: Pentium IV 1 GHz recommended

RAM memory: 1 GB (2 GB recommended)

Hard disk space: 100 MB for SpeechExec, 850 MB for Microsoft .NET 4, 30 MB for Speech Control. 250 MB for Microsoft .NET 2.0

Operating system: Windows 8/7/Vista (32/64 bit), Mac OS X 10.8/10.7

Free USB port

DVD-ROM drive

Graphics card: DirectX-compliant graphics card with hardware acceleration recommended

Sound device: Windows-compatible sound device

Green specifications

Compliant to 2002/95/EC (RoHS)



Lead-free soldered product

Operation conditions

Temperature: 5 °–45 °C/41 °–113 °F

Humidity: 10 %–90 %

Dimensions

Product dimensions (W × D × H): 45 mm × 165 mm × 30 mm/1.8" × 6.5" × 1.2"

Weight: 0.160 kg/0.353 lb

Cable length: 3 m/10 ft

Design and finishing

Material: antimicrobial housing

Color(s): warm grey/black

Package contents

SpeechMike USB dictation microphone

Quick start guide

VERSIONS

VERSIONS

1Push-button operation

LFH3205 with SpeechExec workflow software
LFH3200 without SpeechExec workflow software







24-position slide switch (record, stop, play, fast rewind)

LFH3215 with SpeechExec workflow software
LFH3210 without SpeechExec workflow software







3Configurable 4-position slide switch (fast forward, play/record, stop, fast rewind)

LFH3220 without SpeechExec workflow software
